Wire Mesh Belt For :

Gauge Chart (S.W.G)
S. No. No. Inch mmФ
1. 6 0.192 4.877
2. 8 0.160 4.064
3. 10 0.128 3.251
4. 12 0.104 2.642
5. 14 0.080 2.032
6. 16 0.064 1.626
7. 18 0.048 1.219
8. 19 0.040 1.016
Wire Mesh Belt Manufacturers in India

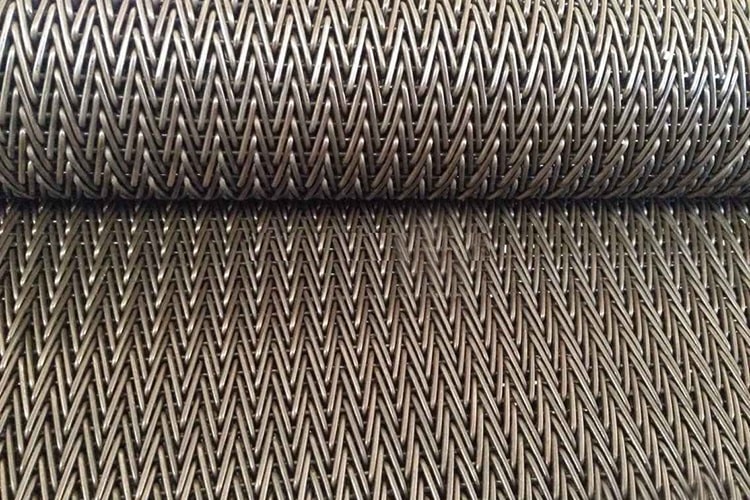

Compound Balanced Belt

Compound Balanced Belts

Sr. No. Specifications No. of Spirals Per Feet No. of Cross Rods Per Feet Spiral Wire Dia Cross Wire Dia
1. CB-3-24-55-12-10 24 55 12 swg 10 swg
2. CB-3-24-65-14-12 24 65 14 swg 12 swg
3. CB-3-30-72-14-12 30 72 14 swg 12 swg
4. CB-3-36-76-16-14 36 76 16 swg 14 swg
5. CB-3-36-80-18-16 36 80 18 swg 16 swg
6. CB-3-60-80-18-16 60 80 18 swg 16 swg
7. CB-3-60-100-16-18 60 100 16 swg 18 swg
