Wire Mesh Belt For :

Gauge Chart (S.W.G)
S. No. No. Inch mmФ
1. 6 0.192 4.877
2. 8 0.160 4.064
3. 10 0.128 3.251
4. 12 0.104 2.642
5. 14 0.080 2.032
6. 16 0.064 1.626
7. 18 0.048 1.219
8. 19 0.040 1.016
Wire Mesh Belt Manufacturers in India

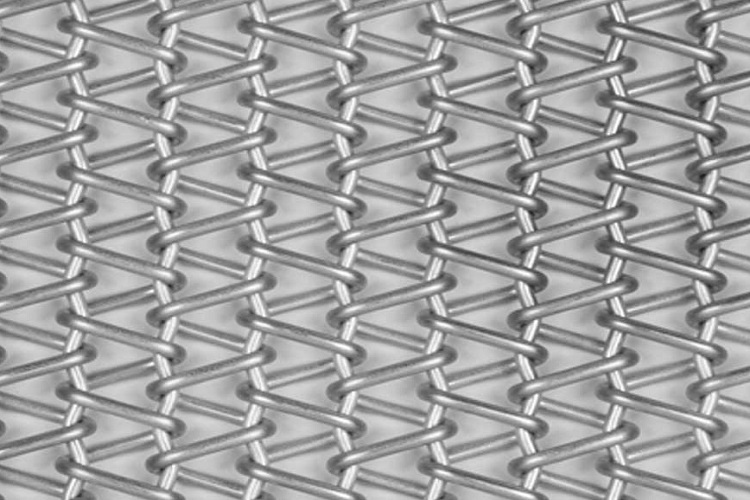

Balanced Belt

Balanced Belt            Balanced Belt

Balanced Belt            Balanced Belt

Sr. No. Specifications No. of Spirals Per Feet No. of Cross Rods Per Feet Spiral Wire Dia Cross Wire Dia
1. B-12-12-10-08 12 12 10 swg 08 swg
2. B-12-12-3x2-10 12 12 Flat Wire of 3x2 mm 10 swg
3. B-18-12-3x2-10 18 12 Flat Wire of 3x2 mm 10 swg
4. B-24-19-10-09 24 19 10 swg 09 swg
5. B-24-19-10-10 24 19 10 swg 10 swg
6. B-24-19-12-10 24 19 12 swg 10 swg
7. B-24-18-14-12 24 18 14 swg 12 swg
8. B-30-15-10-10 30 15 10 swg 10 swg
9. B-36-18-3.5x1.5-10 36 18 Flat Wire of 3.5x1.5 mm 10 swg
10. B-36-20-3x2-10 36 20 Flat Wire of 3x2 mm 10 swg
11. B-36-22-12-10 36 22 12 swg 10 swg
12. B-36-20-12-10 36 20 12 swg 10 swg
13. B-36-18-10-10 36 18 10 swg 10 swg
14. B-36-15-10-10 36 15 10 swg 10 swg
15. B-36-24-16-14 36 24 16 swg 14 swg
16. B-36-18-14-12 36 18 14 swg 12 swg
17. B-60-40-2x1.5-14 60 40 Flat wire of 2x1.5 mm 14 swg
18. B-60-40-16-14 60 40 16 swg 14 swg
19. B-60-24-16-14 60 24 16 swg 14 swg
20. B-60-28-18-16 60 28 18 swg 16 swg
21. B-72-24-14-12 72 24 14 swg 12 swg
22. B-72-24-16-14 72 24 16 swg 14 swg
